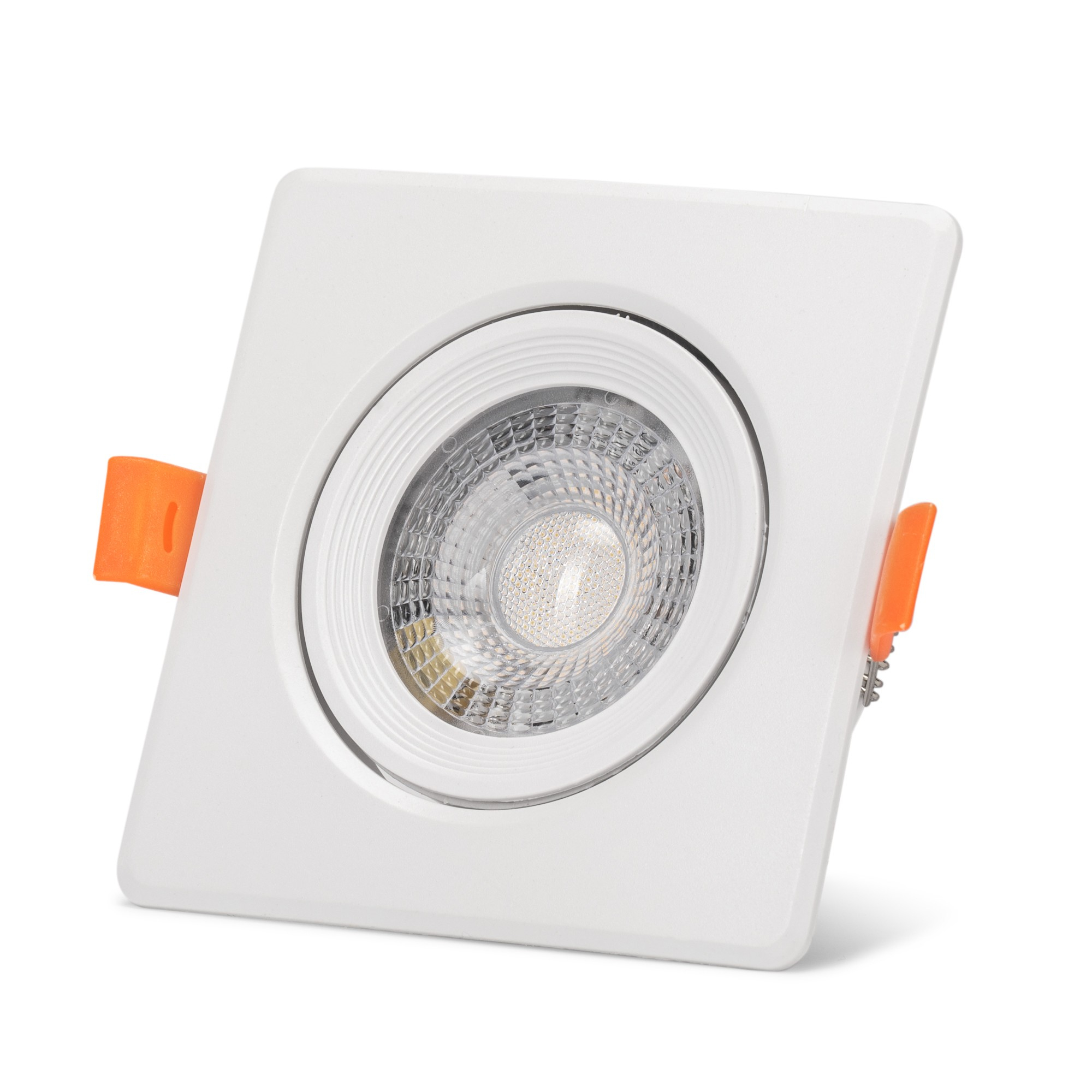

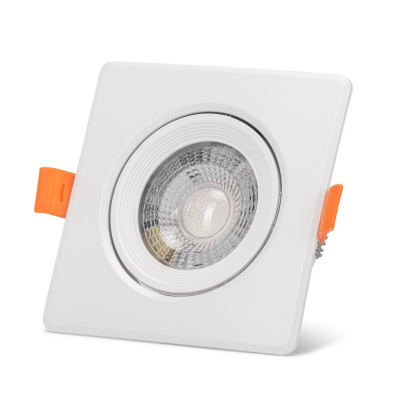

LED Downlight 38° Square 7W WW
Product code: ALDLS38WW-S-7W
7 W
677 lm
25 000 h
Product Support
In case you have any questions about our products or requests please feel free to contact us.
EAN
5999097916088
Warranty
3 year(s)
Material
PC+PC
Lifespan
25 000 h
Color
White
Changeable Color Temperature
No
Technology
LED
Socket
Cable
Power
7 W
Equivalent wattage
52 W
Voltage
230 V
Voltage range
100-265 V
DIP angle
+45° / -45 °
Working temperature
-20 -+40°c
Depth
42 mm
IP Class
IP20
Diameter
90 mm
Cutout size
75-85 mm
Length
90 mm
Width
90 mm
Height
42 mm
Color temperature
3 000 K
Lumen output
677 lm
Lumen/Watt
96 lm/W
Color temperature
WW
Beam angle
38 °
Chip type
SMD2835
Color rendering index
80
Swivel
Yes
Dimmable
No
No information
CTN
9405114090
Packaging size
125mm x 105mm x 52mm
Weight
81 gram
Gross volume
536,25 cm³
Carton EAN
5999097916095
Pcs / carton
100
Carton size
640mm x 290mm x 440mm
Detailed description

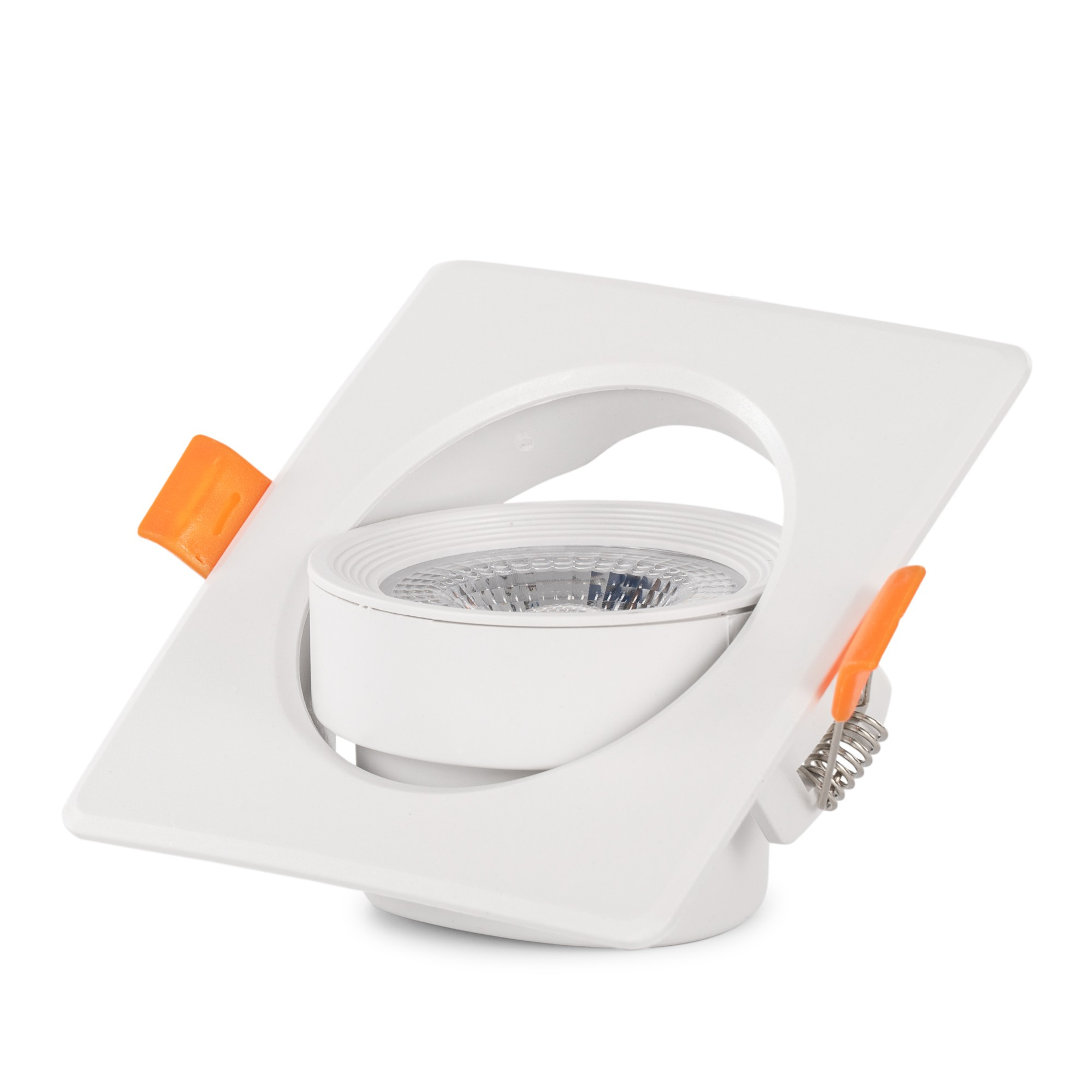

The Avide spot lamps can be recessed into suspended ceilings and can be fixed easily. The internal part of the frame can be tilted, thus the light of the installed lamp can be directed in the preferred angle for maximum light utilization. Its light is directed, emitting light at an angle of 38 ° in a focused way. Also ideal for lighting narrower spaces, including kitchen counters and cabinets with a mirror. Available both in round and square form.
Downloadable documents
Power Consumption Calculator
Average annual consumption
LED Downlight 38° Square 7W WW
Power
7 W
Hour / day
Day / week
kWh Price
Annual operation time: hour -
Energy Consumption (kWh): kWh -
Energy cost: EUR -
